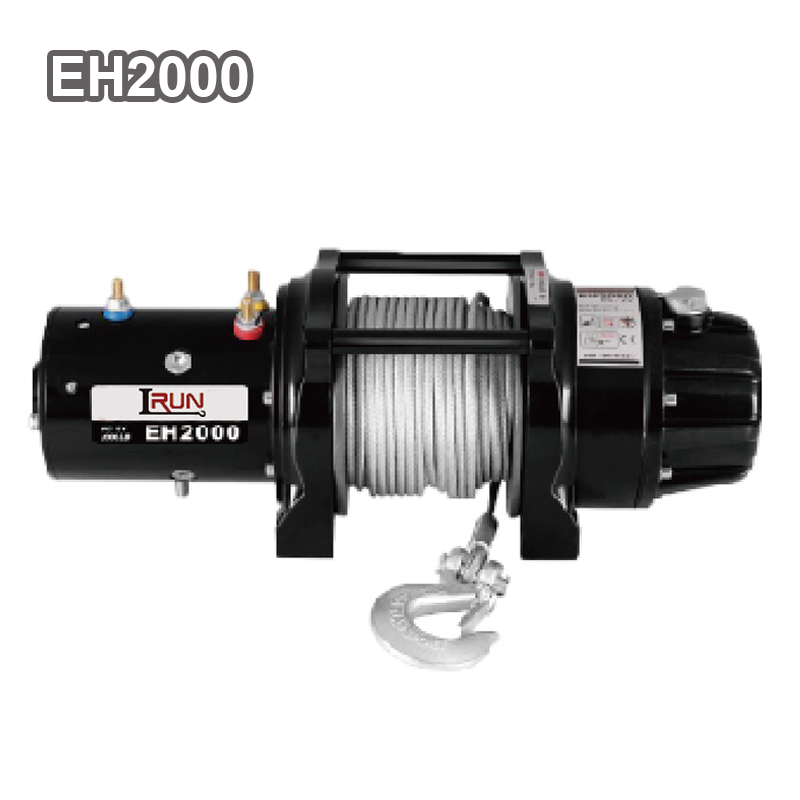

Modelo: EH2000
Características:
*Clusthc completo de spool
*Ação automática de frenagem do cone para parafuso
*Redutor de engrenagem planetária de design de patente
*O design exclusivo faz com que trabalhe continuamente sob várias condições complexas por mais de 10 minutos
*Conheça a nota IP68 impermeável
*Controle remoto sem fio disponível
SPECIFICATION |
|
Rated line pull |
2000lbs (907kgs) |
Motor: permanent magnet |
12V:Input:4.6kw/ 6.1hp; Output:2.1kw/2.8hp |
|
24V:Input:6.5kw/ 8.7hp; Output:2.8kw/3.8hp |
Brake |
Automatic screw cone/ratchet-paw |
Gear reduction ratio |
228:1 |
Cable (Dia.× L) |
Ø15/64"×47.6' (Ø6.0mm×14.5m) No related wire 19*7 optional |
Drum size (Dia.× L) |
Ø3.5"×4.25" (Ø89mm×108mm) |
Mounting bolt pattern |
5.95”×4.5” (151mm×114.3mm) 4-M10 |
Net weight |
66.8lbs/30.3kgs |
12v dc performancespecs (first layer) |
|
||
Line Pull Lbs.(kgs) |
Line Speed Ft/min (m/min) |
Motor |
Pull by layer Layer/Lbs.(kgs) |
Current |
|||
0 |
42.0(12.8) |
75amps |
1/2000(907) |
500(227) |
29.2(8.9) |
85amps |
2/1776(805) |
1000(454) |
25.6(7.8) |
100amps |
3/1597(724) |
1500(680) |
22.0(6.7) |
120amps |
|
2000(907) |
17.1(5.2) |
150amps |
|
Grupo de Produto : Guincho elétrico
