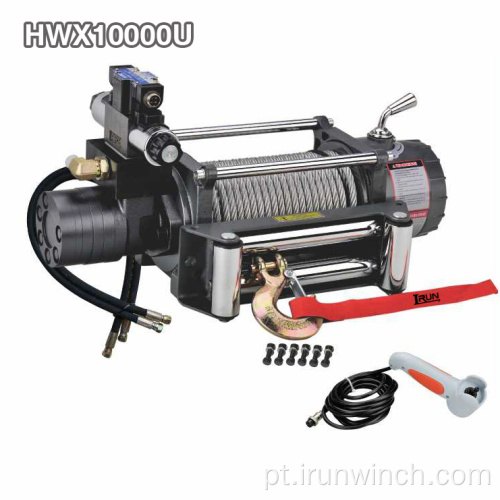

Modelo: HWX10000U
marca: PEDIDO DE OEM ACEITÁVEL
Fonte De Energia: Hidráulico
Inscrição: AUTO
Pacote: EXPORTAR CAIXA OU PALETE DE MADEIRA
transporte: Ocean,Air
Lugar de origem: CHINA
porta: NIGBO,SHANGHAI
Tipo de pagamento: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Nossos guinchos hidráulicos fornecem uma solução de serviço contínuo para seus requisitos de guincho. Projetado com o melhor comercial
Em mente, todos os guinchos apresentam total confiabilidade para puxar manualmente.
Guincho hidráulico de 10000 LBS Item nºHWX10000A - Guincho hidráulico de 10000 libras
Recursos:
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 10Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
2.0(290.1) |
1.3(5) |
2.0 (0.6) |
|
4000(1814) |
3.8(551.1) |
2.6(10) |
3.6(1.1) |
|
6000(2722) |
7.2(1044.2) |
5.3(20) |
7.5(2.3) |
|
8000(3629) |
8.6(1247.3) |
9.2(35) |
13.1(4.0) |
|
10000(4536) |
10.0(1450.3) |
11.9(45) |
17.4(5.3) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
10000(4536) |
17.4(5.3) |
|
|
2 |
7969(3615) |
39.4(12.0) |
|
|
3 |
6624(3005) |
65.0(19.8) |
|
|
4 |
5667(2571) |
85.3(26.0) |

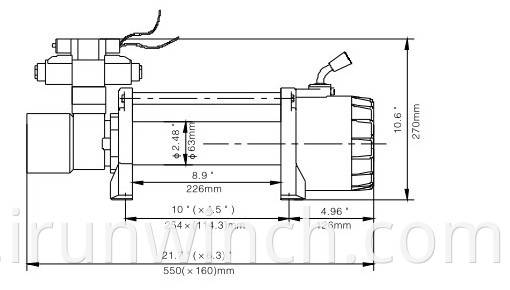

| ITEM | HWX10000A | HWX10000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm×217mm | 550mm×174mm×270mm | |
| Net weight (Ibs) | 91.0 | 91.0 | |
| (kgs) | 41.3 | 41.1 |
Dimensões gerais 21,6 ″ x 6,3 ″ x 8,7 ″
(C x L x A) 550 mm x 160 mm x 220 mm
Peso líquido 41,3 kgs
Grupo de Produto : Guinchos hidráulicos 4x4 > Guincho Hidráulico 4x4
