Modelo: HWX12000U
marca: PEDIDO DE OEM ACEITÁVEL
Fonte De Energia: Hidráulico
Inscrição: ATV / UTV
Voltagem: 24V, 12V
Pacote: EXPORT CARTON
transporte: Ocean,Air
Lugar de origem: CHINA
porta: NINGBO,SHANGHAI
Tipo de pagamento: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

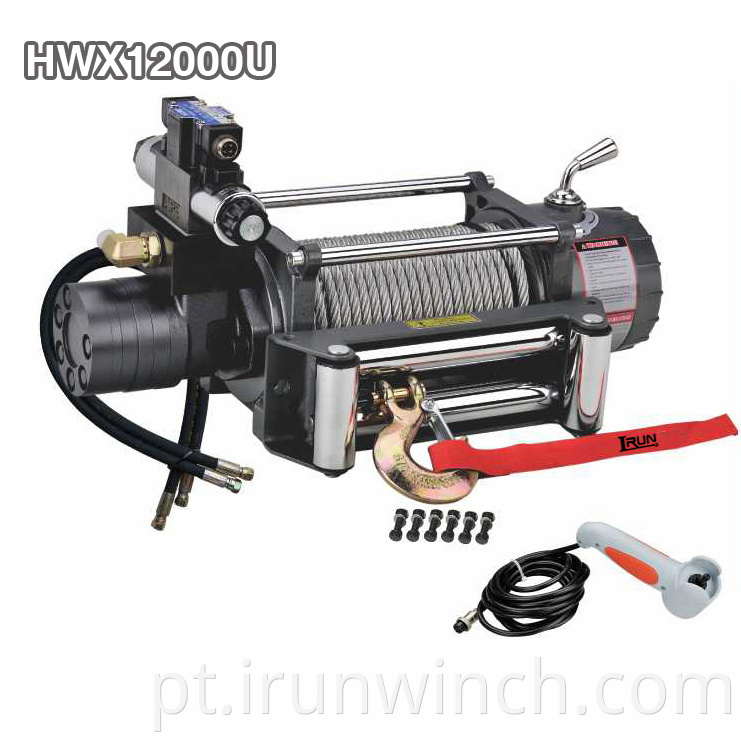

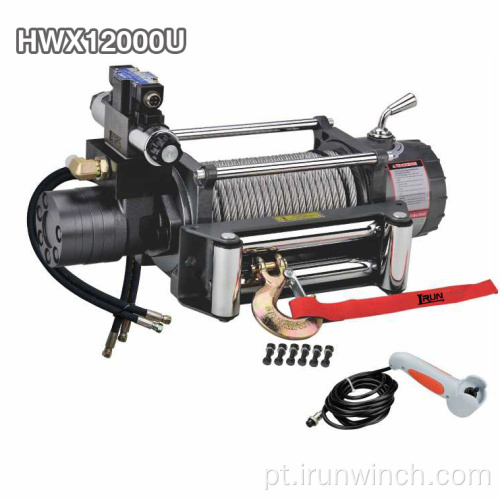

12000 libras Guincho Hidráulico Item nº HWX12000U
Recursos:
| SPECIFICATION | |
| Rated line pull | 12000 lbs (5443kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 11Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø13/32 “×83.7 ‘ (Ø10.2mm×25.5m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) |
Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5) | 1.6(0.5) |
| 3000(1361) | 3.3(478.6) | 2.6(10) | 3.6(1.1) |
| 6000(2722) | 7.2(1044.2) | 5.3(20) | 7.5(2.3) |
| 9000(4082) | 9.2(1344.3) | 9.2(35) | 13.1(4.0) |
| 12000(5443) | 11.0(1595.4) | 11.9(45) | 17.4(5.3) |
| Layer of cable |
Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
| 1 | 12000(5443) | 15.7(4.8) | |
| 2 | 9563(4338) | 36.4(11.1) | |
| 3 | 7949(3606) | 60.0(18.3) | |
| 4 | 6801(3085) | 83.7(25.5) |
| ITEM | HWX12000A | HWX12000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 94 | 94 | |
| (kgs) | 42.8 | 42.6 |
Dimensões gerais 21,6 ″ x 6,3 ″ x 8,7 ″
(C x L x A) 550 mm x 160 mm x 220 mm
Peso líquido 42,8 kgs
Grupo de Produto : Guinchos hidráulicos 4x4 > Guincho Hidráulico 4x4
